| Material: | Ductile Iron GJS500-7 | Internal Parts: | SS304 |
|---|---|---|---|
| Flow Area: | Full Flow Area | Color: | RAL 5010 |
| Standard: | EN1074-4 AWWAC515 | Approval: | WRAS NSF61 |
| High Light: | air pressure release valve,water air release valve |
||

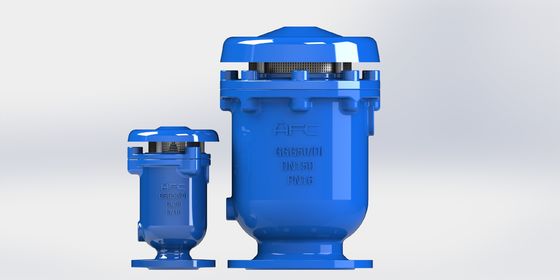

Triple function, large air exhausting, small air venting, vacuum breaker, Anti-shock, Combination air release valve
Features:
. Advanced design with simple mechanism, strong fl oat to prevent cracking during sudden water hammer& quick closure.
. Aerokinetic mechanism to resist blow shut under higher air velocity even up to sonic velocity of air.
. No arms or levers to prevent vibrating, bending, direct closure of the fl oat.
. Smooth cage outside of the fl oat, keep float moving in specifi ed guide rail.
. Bottom rubber buffer for collision prevention, and drain easy with proper holes around the cage during vacuum.
. Outside screen will be an option for safety and prevent insects or birds in.
. Fully fusion epoxy coated inside and outside of valve body for long term services.
. Manufacturing standard meets BS EN1074-4, AWWA C512
. Flange drilling and dimension meets BS EN 1092 and BS EN 558 and ANSI flange.
Function:
Combination kinetic air release valve provide 3 functions:
1. Large air release
1-1. During filling the pipeline, float will stay at its original position. (open)
1-2. Let large air out of valve thru big nozzle.
2. Small air release
2-1.When the water level comes up to the top, float will be up to its close position and close the sealing arc- big orifice and small orifice.
2-2.The air (2% of solved air in water ) are continuously coming out from water and gather at the top of the valve.
2-3.The float will be driven down and let small pocket out thru small orifice.
2-4.The sealing arc will still be in close position until empty of water
3. Large air intake during draining of the pipeline.
3-1.Float will drop down when empty of pipeline.
3-2.Large air will come into the pipeline thru valve.
3-3.Preventing from collapse of pipeline and break vacuum.
3-4.Protect the sealing o-ring from clogging in the pipeline.
Service Fields:
For water system, fire fighting, irrigation system.
Technical Data:
Size range:DN 25-300MM
Pressure ratings:1.0Mpa, 1.6Mpa(Thread)
1.0Mpa,1.6Mp,2.5 Mpa(Flange)
Working temperature: -10°-80°C.
Flow media: clean water
Size Selection Table:
| Water flow rate range Max CMH |
760 | 1360 | 4160 | 8500 | 19100 | 33400 | 76300 |
| Main pipeline size mm |
80-300 | 200-400 | 400-700 | 750-1000 | 1050-1500 | 1500-2000 | 2100-3000 |
| Inlet size of KARX mm |
25 | 50 | 80 | 100 | 150 | 200 | 300 |
| bore of outlet mm |
50 | 75 | 95 | 130 | 170 | 230 | 330 |
| small orifice size mm |
1.6 | 1.6 | 2 | 2.5 | 3 | 4 |
4
|
Material List:
KARS ( Thread Type DN25-DN50)
KARX ( Flange Type DN50-DN300)
Dimension:
KARS ( Thread Type DN25-DN50)
KARX ( Flange Type DN50-DN300)
Air Flow Characteristic
Large Air Exhausting
Air Intake
Small air venting
