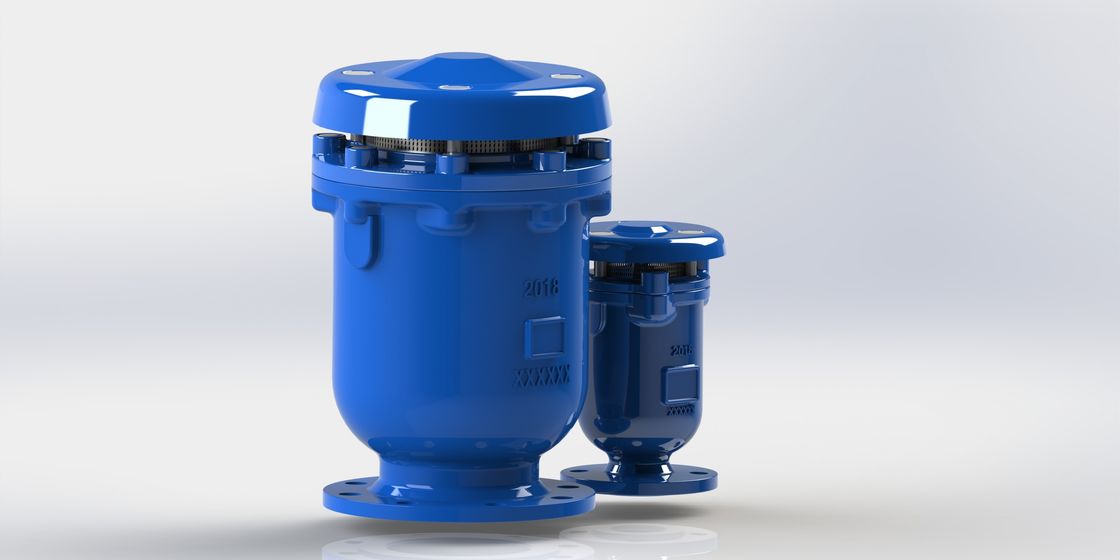

Name: SS304 Internals Combination Air Release Vacuum Valve With Rubber Sealing Float
Brand: AFC OEM
SKU: KARX KARR KARS ARVS
Rating: 4.9 (144 reviews)

Home Products Combination Air Release Valve

SS304 Internals Combination Air Release Vacuum Valve With Rubber Sealing Float

Product Details:

Place of Origin:	China
Brand Name:	AFC OEM
Certification:	EN1074-4
Model Number:	KARX KARR KARS ARVS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD RMB
Packaging Details:	Plywood cases
Delivery Time:	Based on order
Payment Terms:	L/C, T/T
Supply Ability:	60 days for two containers

Contact Now

Detailed Product Description

Material:	Ductile Iron GJS500-7	Float:	Stainless Steel 304
Color:	RAL 5010	Rubber:	EPDM
Flow Area:	Full Flow Area	Standard:	EN1074-4
High Light:	air pressure release valve , water air release valve

Triple Function Full Flow Area Single Chamber Combination Air Release Valve SS304 Internals

Features:

• 100% -full flow area thru the valve internal.

• maximize the small orifice from 1.6MM (DN 50) to 4.0MM (DN300).

• The float can resist high pressure from 51-70Bar for different size air valve.

• Guide barrel have few holes in surroundings for water exhausting and help float drop down easier and quicker during vacuum.

• Can blow off the water on top of the sealing arc thru small orifice and keep it dry to prevent polluted water coming into pipeline during vacuum.

• Most parts of valves can be recycled.

• Single body preventing breakage of dual bodies connection.

• All internal parts are 304SS material without rusting.

• Screen on the top can prevent harm to children, insects and birds to get in.

• Float with a rubber sealing on top, provide better sealing ( larger buoyancy ) effect on small orifice.

• Float with a rubber sealing can be as an absorber to prohibit water hammer direct acting on the sealing arc and seat impact.

•Special cover design-prevent stealing water.

Description:

Combination kinetic air release valve provide 3 functions:

1. Large air release

2. Small air release

3. Large air intake during draining of the pipeline.

Size Selection Table:

Water flow rate range Max CMH	760	1360	4160	8500	19100	33400	76300
Main pipeline size mm	80-300	200-400	400-700	750-1000	1050-1500	1500-2000	2100-3000
Inlet size of KARX mm	25	50	80	100	150	200	300
bore of outlet mm	50	75	95	130	170	230	330
small orifice size mm	1.6	1.6	2	2.5	3	4	4

Material List:

KARS ( Thread Type DN25-DN50)

SS304 Internals Combination Air Release Vacuum Valve With Rubber Sealing Float 0

KARX ( Flange Type DN50-DN300)

SS304 Internals Combination Air Release Vacuum Valve With Rubber Sealing Float 2

Dimension:

KARS ( Thread Type DN25-DN50)

SS304 Internals Combination Air Release Vacuum Valve With Rubber Sealing Float 4

SS304 Internals Combination Air Release Vacuum Valve With Rubber Sealing Float 5

KARX ( Flange Type DN50-DN300)

SS304 Internals Combination Air Release Vacuum Valve With Rubber Sealing Float 6

SS304 Internals Combination Air Release Vacuum Valve With Rubber Sealing Float 7

Air Flow Characteristic

Large Air Exhausting

SS304 Internals Combination Air Release Vacuum Valve With Rubber Sealing Float 8

Air Intake

SS304 Internals Combination Air Release Vacuum Valve With Rubber Sealing Float 9

Small air venting

SS304 Internals Combination Air Release Vacuum Valve With Rubber Sealing Float 10
