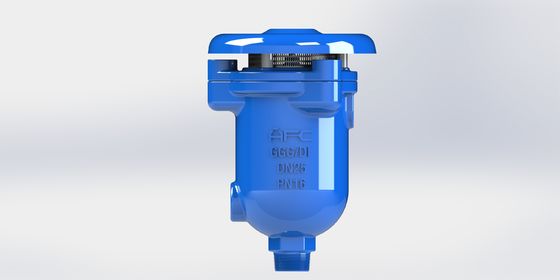

Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float

Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float

  • Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float
  • Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float
  • Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float
Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float
Product Details:
Place of Origin: China
Brand Name: AFC OEM
Certification: EN1074-4
Model Number: KARX KARR KARS ARVS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: Plywood cases
Delivery Time: Based on order
Payment Terms: L/C, T/T
Supply Ability: 60 days for two containers
Contact Now
Detailed Product Description
Material: Ductile Iron GJS500-7 Float: Stainless Steel 304
Color: RAL 5010 Rubber: EPDM
Flow Area: Full Flow Area Standard: EN1074-4
High Light:

air pressure release valve

,

water air release valve





Single Chamber Combination Air Release Valve Triple Function Full Flow Area





Description:



Combination kinetic air release valve provide 3 functions:



1. Large air release

  1-1. During filling the pipeline, float will stay at its original position. (open)



  1-2. Let large air out of valve thru big nozzle.



2. Small air release

  2-1.When the water level comes up to the top, float will be up to its close position and close the sealing arc- big orifice and small orifice.



  2-2.The air (2% of solved air in water ) are continuously coming out from water and gather at the top of the valve.



  2-3.The float will be driven down and let small pocket out thru small orifice.



  2-4.The sealing arc will still be in close position until empty of water



3. Large air intake during draining of the pipeline.

  3-1.Float will drop down when empty of pipeline.



  3-2.Large air will come into the pipeline thru valve.



  3-3.Preventing from collapse of pipeline and break vacuum.



  3-4.Protect the sealing o-ring from clogging in the pipeline.



Features:


. Advanced design: Simple mechanism and strong float to prevent cracking during sudden water hammer& quick closure.
. No arms or levers to prevent vibrating, bending, direct closure of the fl oat.
. Smooth cage outside of the float, keep float moving in specifi ed guide rail.
. Bottom rubber buffer for collision prevention, and drain easy with proper holes around the cage during vacuum.
. Outside screen is for safety and prevent insects in.
. Fully fusion epoxy coated inside and outside of valve body for long term services.
. Manufacturing standard : BS EN1074-4, AWWA C512
. Flange drilling and dimension : BS EN 1092 and BS EN 558 and ANSI flange.



Size Selection Table:



Water flow rate range
Max CMH
760 1360 4160 8500 19100 33400 76300
Main pipeline size
mm
80-300 200-400 400-700 750-1000 1050-1500 1500-2000 2100-3000
Inlet size of KARX
mm
25 50 80 100 150 200 300
bore of outlet
mm
50 75 95 130 170 230 330
small orifice size
mm
1.6 1.6 2 2.5 3 4
4





Material List:



KARS ( Thread Type DN25-DN50)



Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float 0Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float 1





KARX ( Flange Type DN50-DN300)



Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float 2Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float 3







Dimension:



KARS ( Thread Type DN25-DN50)



Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float 4



Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float 5



KARX ( Flange Type DN50-DN300)



Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float 6



Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float 7



Air Flow Characteristic



Large Air Exhausting

Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float 8



Air Intake



Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float 9



Small air venting

Combination Clean Water Air Release Valve With Fully Fusion Epoxy Coated Stainless Steel Float 10



Contact Details
Suzhou Alpine Flow Control Co., Ltd

Contact Person: Mr. Matt Liang

Tel: +86 15195674203

Fax: 86-512-6673-2928

Send your inquiry directly to us (0 / 3000)
