Suzhou Alpine Flow Control Co., Ltd
Be The Market Leader In Water Flow Control Valve
 |
| Place of Origin: | China |
| Brand Name: | AFC, Multiple list and Private label is available |
| Certification: | FM1120 UL 262 |
| Model Number: | FRHF FRHG FRHX |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price negotiable |
| Packaging Details: | Plywood cases |
| Delivery Time: | Based on order |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 days for 2 containers |
| Product Name: | Fire Protection UL FM Gate Valves With Outside Screw Yoke Type / NRS Type | Material: | Ductile Iron |
|---|---|---|---|
| Color: | Red EY3000 | Connection: | Flange Groove |
| Stem: | SS420 | Wedge: | EPDM Vulcanized |
| Flange: | AISI B16.4 PN16 | ||
| High Light: | soft seated gate valve,fire fighting gate valve |
||

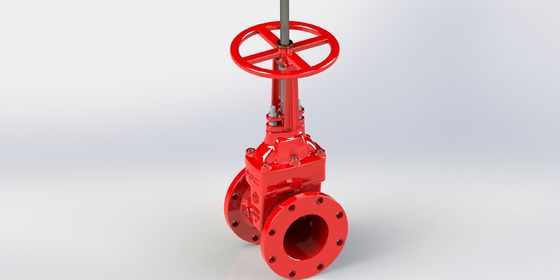

Fire Protection Service UL FM Gate Valves For Outside Screw and Yoke Type and NRS Type
Description:
The valve has been designed to prevent water within the body from leaking to the enviornment at the point where the stem passes through the bonnet.It is designed to be replaced by one person with the valve in the wide open position and under the rated working pressure
The body of a valve is of the straightway type and when the gate is fully open, a waterway diameter equal the inside diameter of a mating pipe
The body and bonnet of a valve shall be made of materials having strength, rigidity, and resistance to corrosion.
OS&Y gate valve are used indoors or in outdoors pits and NRS valves are used with wall indicator posts or underground with tee-handle wrenches or indicator posts attached or as roadway box valves
Quality Control
| IQC | Check call incoming parts |
| IPQC | Check the production process is qualified |
| FQC | All valves are pressure tested |
| OQC | Check the valve ourlook and packing |
Material
Dimension
