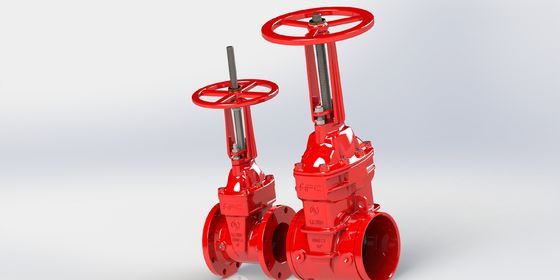

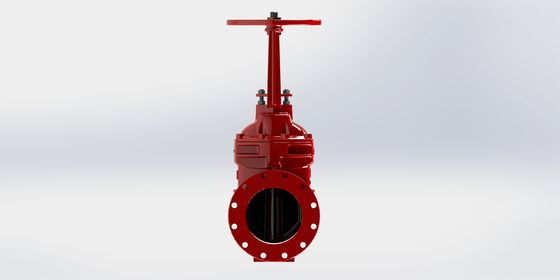

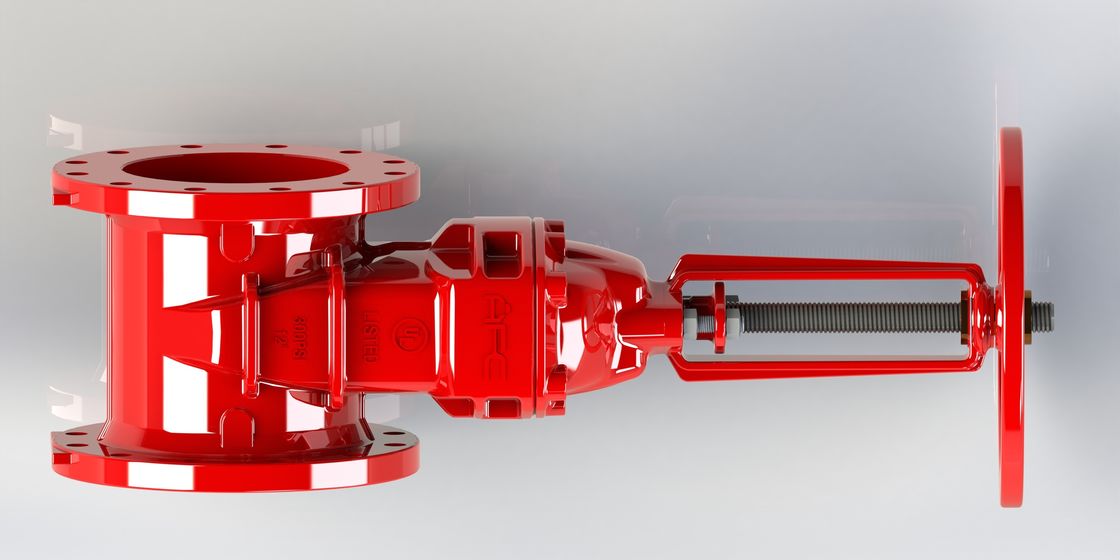

Light Operation Torque Wedge Type Gate Valve , UL FM Aproved Water Flow Control Valve

Light Operation Torque Wedge Type Gate Valve , UL FM Aproved Water Flow Control Valve

  • Light Operation Torque Wedge Type Gate Valve , UL FM Aproved Water Flow Control Valve
  • Light Operation Torque Wedge Type Gate Valve , UL FM Aproved Water Flow Control Valve
  • Light Operation Torque Wedge Type Gate Valve , UL FM Aproved Water Flow Control Valve
Light Operation Torque Wedge Type Gate Valve , UL FM Aproved Water Flow Control Valve
Product Details:
Place of Origin: China
Brand Name: AFC, Multiple list and Private label is available
Certification: FM1120 and UL 262
Model Number: FRHF FRHG FRHX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: Plywood cases
Delivery Time: Based on order
Payment Terms: L/C, T/T
Supply Ability: 60 days for 2 containers
Contact Now
Detailed Product Description
Material: Ductile Iron Color: Red EY3000
Connection: Flange Groove Stem: SS420
Wedge: EPDM Flange: AISI B16.4 PN16
Highlight:

soft seated gate valve

,

fire fighting gate valve





Fire Service UL FM aproved Resilient Seated Gate Valve Light Weight Light Operation Torque







   Fire fighting Resilient seated gate valve is for long term water flow service, indoor, outdoor, above or underground.



Application



OS&Y gate valve are used indoors or in outdoors pits and NRS valves are used with wall indicator posts or underground with tee-handle wrenches or indicator posts attached or as roadway box valves



NRS gate valves are available either with or without a base flange. Valves with base flange are used to support upright indicator posts. Valves without base flange are used with wall indicator or tee-wrenches in buried serivces



Specification



Size DN50-DN300
Working Temperature - 10C- 80C
Flange AISI B16.1 and PN16
Grooved Ends AWWA C606
Flow Media Water





Dimension







Light Operation Torque Wedge Type Gate Valve , UL FM Aproved Water Flow Control Valve 0

Light Operation Torque Wedge Type Gate Valve , UL FM Aproved Water Flow Control Valve 1



Light Operation Torque Wedge Type Gate Valve , UL FM Aproved Water Flow Control Valve 2

Light Operation Torque Wedge Type Gate Valve , UL FM Aproved Water Flow Control Valve 3
