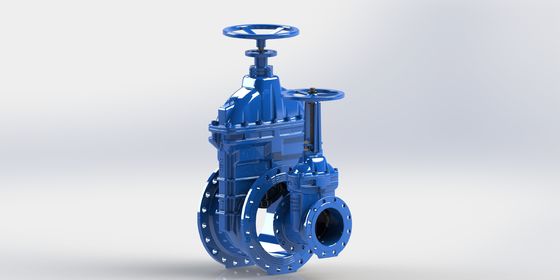

Ductile Iron Resilient Wedge Gate Valve , Epoxy Coated Steam Gate Valves

Ductile Iron Resilient Wedge Gate Valve , Epoxy Coated Steam Gate Valves

  • Ductile Iron Resilient Wedge Gate Valve , Epoxy Coated Steam Gate Valves
  • Ductile Iron Resilient Wedge Gate Valve , Epoxy Coated Steam Gate Valves
  • Ductile Iron Resilient Wedge Gate Valve , Epoxy Coated Steam Gate Valves
Ductile Iron Resilient Wedge Gate Valve , Epoxy Coated Steam Gate Valves
Product Details:
Place of Origin: China
Brand Name: AFC, OEM
Certification: WRAS, CE, ISO9001
Model Number: GBCX, GBHX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD or RMB
Packaging Details: Plywood cases packing
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: 60 days for two containers
Contact Now
Detailed Product Description
Material: Ductile Iron GJS500-7 Color: Blue RAL5010, Red
Standard: EN1074-2 Size: DN50-DN600
Nut: Brass, Bronze Operator: HW, Cap
Highlight:

ductile iron gate valve

,

resilient seated gate valve

,

Epoxy Coated Steam Gate Valves





Ductile iron Resilent Seated Water Gate Valve Fusion Bonded Epoxy Coated







Features:



•  Body & bonnet are made of high grade ductile Iron GJS500-7


•  Disc is designed with an abrasion resistant nylon guide which can help less opening or closing torgue and smooth during operation.

   1. WRAS Approved EPDM fully vulcanized

   2. Suitable rubber hardness for long lasting



• The 4 O-ring stem seals are designed to prevent stem leakage. and provide replacement of the O-ring without disassambling of valve from mainline pipes.


•  Forged stem provide stronger stem operation and less moving parts.

   1. Customized Material, like SS420 / SS431 / SS304/ SS316 are available.

   2. Platform on the stem provide better strength. Pass R-key test.

   3. High-tech rubber curing with precise geometry dimensions, more resilient & strong adhesive to ductile casting.


•  Epoxy powder coated with minumum thickenss 250um.


•  Wter Gate Valve standard meets BS EN 1074-1, EN1074-2, BS 5163, BS EN 1171.


•  F/F (Face to Face) meets the following standard: BS EN558-1.



Quality System In production



IQC Check call incoming parts
IPQC Check the production process is qualified
FQC All valves are pressure tested
OQC Check the valve ourlook and packing





Size Range: DN50~DN600mm


Pressure Rating: 1.0Mpa; 1.6Mpa; (2.5MPa Up to DN300)


Working Temperature:-10- 80


Flow Media: Water, Sewage


End Connection: PN 10/ 16, PN25 is available up to DN300



Material:

Ductile Iron Resilient Wedge Gate Valve , Epoxy Coated Steam Gate Valves 0Ductile Iron Resilient Wedge Gate Valve , Epoxy Coated Steam Gate Valves 1

Dimension :





Ductile Iron Resilient Wedge Gate Valve , Epoxy Coated Steam Gate Valves 2





Ductile Iron Resilient Wedge Gate Valve , Epoxy Coated Steam Gate Valves 3







Ductile Iron Resilient Wedge Gate Valve , Epoxy Coated Steam Gate Valves 4
