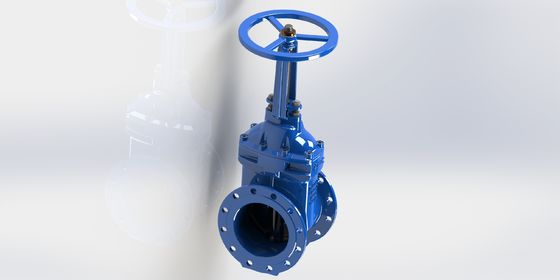

FBE Coated Gate Valve With Rubber Wedge Rising Stem Outside Screw And Yoke

FBE Coated Gate Valve With Rubber Wedge Rising Stem Outside Screw And Yoke

  • FBE Coated Gate Valve With Rubber Wedge Rising Stem Outside Screw And Yoke
  • FBE Coated Gate Valve With Rubber Wedge Rising Stem Outside Screw And Yoke
  • FBE Coated Gate Valve With Rubber Wedge Rising Stem Outside Screw And Yoke
  • FBE Coated Gate Valve With Rubber Wedge Rising Stem Outside Screw And Yoke
FBE Coated Gate Valve With Rubber Wedge Rising Stem Outside Screw And Yoke
Product Details:
Place of Origin: China
Brand Name: AFC, OEM
Certification: WRAS, ISO9001
Model Number: RBHX, RAHX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD or RMB
Packaging Details: Plywood cases
Delivery Time: 60 days for 2 container
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Material: DI GJS500-7 Coating: Fusion Bonded Epoxy
Stem: SS420 SS413 Handwheel Material: Carbon Steel , Ductile Iron
Color: Blue RAL5010, Red Pressure Rating: PN10,16
Highlight:

ductile iron gate valve

,

resilient seated gate valve





Rising Stem Outside Screw And Yoke Gate Valve, Rubber Wedge, FBE Coated, WRAS Approved​







Description:



AFC's rising stem gate valve are can be used in water field, irrigation and fire fighting system. FBE with high quality powder with WRAS apprived coated to prevent corrosion. The minimum coating thickness is 250um. Easy operating with low torque. Advanced design with less weight. All designed are by solidworks and it gives engineer to have an accurate calculation to design which gives our valve have less weight and better performance.



Spec:



Size DN50-DN300
Working Temperature - 10C- 80C
Flange PN10/16
Flow Media Water, Sewage Water
Face to Face EN558-1





Feature:



1. Body, Yoke and Bonnet are made of Ductile Iron GJS500-7.

2. Wedge is fully vulcanized by EPDM. No corrosion and long lasting life.

3. Rolled Stem thread

4. One pcs

6. Nylon Guiding can help to reduce the torque.



Quality System:



1. IQC - Incoming QC - We checked all incoming parts to ensure they are qualified.

2. IPQC - Input Process QC - During the production process, we checked the quality.

3. FQC - Final QC - All finished goods are 100% tested by factory.

4. OQC - Outgoing QC - Clean, packing and ensure the QTY is correct.

5. Tested standard : Seat :1.1 x PN, Body: 1.5 x PN



Technical Spec:



Size DN50-DN300
Working Temperature - 10C- 80C
Flange PN10/16
Flow Media Water, Sewage Water
Face to Face EN558-1



Dimension:

FBE Coated Gate Valve With Rubber Wedge Rising Stem Outside Screw And Yoke 0FBE Coated Gate Valve With Rubber Wedge Rising Stem Outside Screw And Yoke 1



Material:

FBE Coated Gate Valve With Rubber Wedge Rising Stem Outside Screw And Yoke 2FBE Coated Gate Valve With Rubber Wedge Rising Stem Outside Screw And Yoke 3

FBE Coated Gate Valve With Rubber Wedge Rising Stem Outside Screw And Yoke 4
