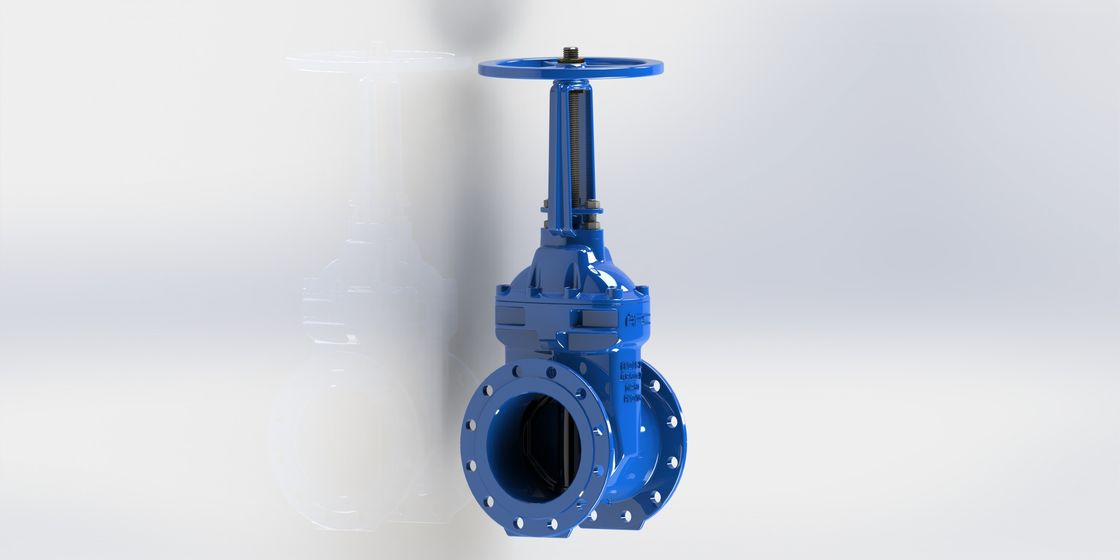

Rising Stem Soft Seated Ductile Iron Gate Valve EPOXY Rubber Coated Available

Rising Stem Soft Seated Ductile Iron Gate Valve EPOXY Rubber Coated Available

  • Rising Stem Soft Seated Ductile Iron Gate Valve EPOXY Rubber Coated Available
  • Rising Stem Soft Seated Ductile Iron Gate Valve EPOXY Rubber Coated Available
  • Rising Stem Soft Seated Ductile Iron Gate Valve EPOXY Rubber Coated Available
Rising Stem Soft Seated Ductile Iron Gate Valve EPOXY Rubber Coated Available
Product Details:
Place of Origin: China
Brand Name: AFC, OEM
Certification: ISO9001, EN1074-2
Model Number: RBHX, RBBX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD, RMB
Packaging Details: Plywood cases
Delivery Time: Based on order
Payment Terms: L/C, T/T
Supply Ability: 60 days for 2 Containers
Contact Now
Detailed Product Description
Quality: ISO9001 Standard: EN1074-2
Material: Ductile Iron Rubber: EPDM
O-ring: NBR Non-Metalic: WRAS Approved
Highlight:

ductile iron gate valve

,

awwa gate valve





Rising Stem Soft Seated Ductile Iron Gate Valve, EPOXY Coated, WRAS Approved Materials







AFC's OS and Y resilient seated gate valve has the clear waterway, unobstructed and full flow area. It is coated by fusion bonded epoxy both on the interior and the exterior surfaces of the valve, flange surfaces are also fully epoxy coated. The minimum coating thickness is 250um. Customized coating thickness is also allowable.



The valves seal 100% leak tight. Every pcs are tested before shipping. All valves are tested by shell test and seat test based on EN1074-2.



Production Quality Control



IQC Check call incoming parts
IPQC Check the production process is qualified
FQC All valves are pressure tested
OQC Check the valve ourlook and packing





Material and Dimension:



Rising Stem Soft Seated Ductile Iron Gate Valve EPOXY Rubber Coated Available 0Rising Stem Soft Seated Ductile Iron Gate Valve EPOXY Rubber Coated Available 1





Rising Stem Soft Seated Ductile Iron Gate Valve EPOXY Rubber Coated Available 2Rising Stem Soft Seated Ductile Iron Gate Valve EPOXY Rubber Coated Available 3
