Home ProductsWater Gate Valve

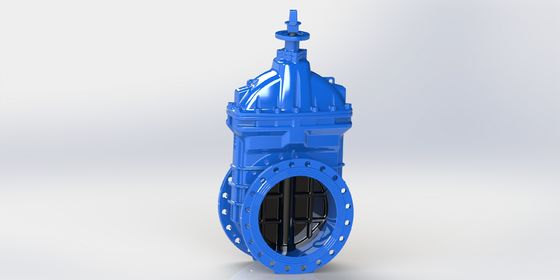

WRAS Approved Soft Seated Water Gate Valve with Handwheel Operated / Non Rising Stem

WRAS Approved Soft Seated Water Gate Valve with Handwheel Operated / Non Rising Stem

  • WRAS Approved Soft Seated Water Gate Valve with Handwheel Operated / Non Rising Stem
  • WRAS Approved Soft Seated Water Gate Valve with Handwheel Operated / Non Rising Stem
  • WRAS Approved Soft Seated Water Gate Valve with Handwheel Operated / Non Rising Stem
WRAS Approved Soft Seated Water Gate Valve with Handwheel Operated / Non Rising Stem
Product Details:
Place of Origin: China
Brand Name: AFC, OEM
Certification: ISO9001, EN1074-2
Model Number: GBHX, G4HX, GBCX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD, RMB
Packaging Details: Plywood cases
Delivery Time: Based on order
Payment Terms: L/C, T/T
Supply Ability: 60 days for 2 containers
Contact Now
Detailed Product Description
Operator: Handwheel, Cap Color: RAL5010, 5015, 5005, Red
Rubber: EPDM Handwheel Material: Carbon Steel, Ductile Iron
Valve Material: DI GJS500-7 Powder: WRAS Approved
High Light:

resilient seated gate valve

,

awwa gate valve





Non Rising Stem Soft Seated Gate Valve, Cap Or Handwheel Operated







Non Rising Stem Soft Seated Gate Valve is the mose common isolation valve in the world in water field. AFC would like to present our NRS gate valve here. It has a low torque, WRAS approved fusion bonded EPOXY coating and light weight.



We complied the following standard:



1. WRAS

2. EN1074-2

3. BS5163



The valve specification is as followed:



Size DN50-DN600
Working Temperature - 10C- 80C
Flange PN10/16
Flow Media Water, Sewage Water
Face to Face EN558-1



Material:



Valve Body DI GJS500-7
Valve Bonnet DI GJS500-7
Valve Gland DI GJS500-7
Wedge DI GJS500-7 with fully vulcanized EPDM
Stem SS420/SS431
Stem nut Brass/Bronze
O-ring NBR







Dimension

WRAS Approved Soft Seated Water Gate Valve with Handwheel Operated / Non Rising Stem 0

WRAS Approved Soft Seated Water Gate Valve with Handwheel Operated / Non Rising Stem 1
