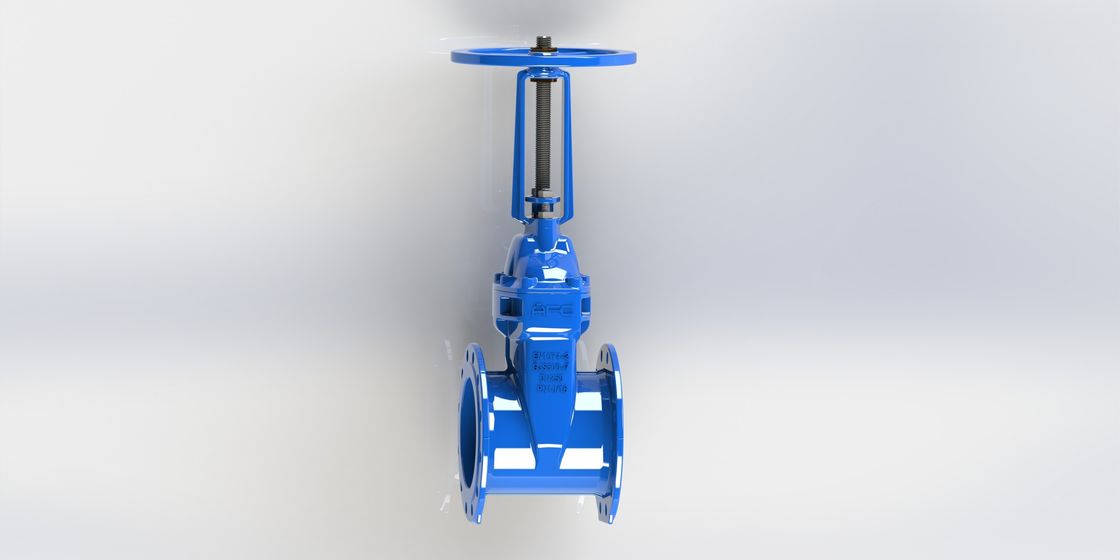

Outside Screw Yoke Water Gate Valve With Soft Wedge / Fusion Bonded Epoxy Coated

Outside Screw Yoke Water Gate Valve With Soft Wedge / Fusion Bonded Epoxy Coated

  • Outside Screw Yoke Water Gate Valve With Soft Wedge / Fusion Bonded Epoxy Coated
  • Outside Screw Yoke Water Gate Valve With Soft Wedge / Fusion Bonded Epoxy Coated
  • Outside Screw Yoke Water Gate Valve With Soft Wedge / Fusion Bonded Epoxy Coated
Outside Screw Yoke Water Gate Valve With Soft Wedge / Fusion Bonded Epoxy Coated
Product Details:
Place of Origin: China
Brand Name: AFC, OEM
Certification: WRAS, ISO9001
Model Number: RBHX, RAHX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Plywood cases
Delivery Time: 60 days for 2 container
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Product Name: Gate Valve Model Code: GBCX GBHX
Material: GGG DI Coating: Fusion Bonded Epoxy
Stem: SS420 SS413 HW: Carbon Steel , Ductile Iron
Color: Blue, Red Pressure Rating: PN10,16
High Light:

resilient seated gate valve

,

awwa gate valve

,

Fusion Bonded Epoxy Coated Gate Valve





Water Gate Valve, Soft Wedge, Outside Screw And Yoke, EPOXY Coated​







Description:



AFC's OS and Y gate valve are can be used in Fire Fighting System. Fusion bonded epoxy coated to prevent corrosion. The minimum coating thickness is 250um. Customized coating thickness is allowalble. Easy operating with low torque. Advanced design with less weight. All designed are by solid works and it gives engineer to have an accurate calculation to design which gives our valve have less weight and better performance.



Service Field:



Water supply, sewage, fire fighting, irrigation, water circulation, heat, cooling system.





Feature:



1. Body, Yoke and Bonnet are made of GSJ500-7.

2. Wedge is fully vulcanized by EPDM.

3. Rolled Stem thread

4. HW can be Carbon Steel or Ductile Iron.

5. Long lasting life.

6. Nylon Guiding can help to reduce the torque.





Quality System:



1. IQC - Incoming QC - We checked all incoming parts to ensure they are qualified.

2. IPQC - Input Process QC - During the production process, we checked the quality.

3. FQC - Final QC - All finished goods are 100% tested by factory.

4. OQC - Outgoing QC - Clean, packing and ensure the QTY is correct.

5. Tested standard : Seat :1.1 x PN, Body: 1.5 x PN



Technical Spec:



Size DN50-DN300
Working Temperature - 10C- 80C
Flange PN10/16
Flow Media Water, Sewage Water
Face to Face EN558-1



Dimension:





Outside Screw Yoke Water Gate Valve With Soft Wedge / Fusion Bonded Epoxy Coated 0Outside Screw Yoke Water Gate Valve With Soft Wedge / Fusion Bonded Epoxy Coated 1



Material:





Outside Screw Yoke Water Gate Valve With Soft Wedge / Fusion Bonded Epoxy Coated 2Outside Screw Yoke Water Gate Valve With Soft Wedge / Fusion Bonded Epoxy Coated 3







Outside Screw Yoke Water Gate Valve With Soft Wedge / Fusion Bonded Epoxy Coated 4
