EPOXY Coated Swing Flex Check Valve For Sewage System Ductile Iron Founded

EPOXY Coated Swing Flex Check Valve For Sewage System Ductile Iron Founded

  • EPOXY Coated Swing Flex Check Valve For Sewage System Ductile Iron Founded
  • EPOXY Coated Swing Flex Check Valve For Sewage System Ductile Iron Founded
  • EPOXY Coated Swing Flex Check Valve For Sewage System Ductile Iron Founded
EPOXY Coated Swing Flex Check Valve For Sewage System Ductile Iron Founded
Product Details:
Place of Origin: China
Brand Name: AFC
Certification: CE, NSF61/372
Model Number: RDCV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: Plywood cases
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Material: GJS500-7 Standard: EN12233
Coating: EPOXY Disc: EPDM
Incline Angle: 40 Degree Media: Water And Waste Water
Highlight:

swing type check valve

,

ductile iron swing check valve





Swing Flex Check Valve 40 degree incline Ductile Iron EPOXY Coated Nylon Reinforcement Disc​







Description:

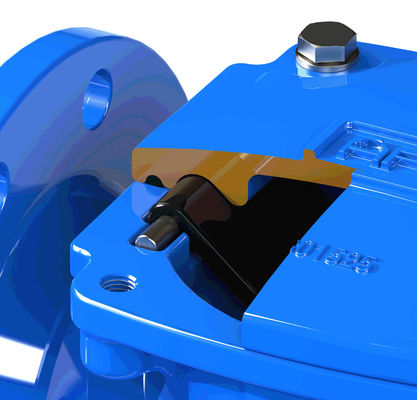

    RDCV, Rubber Disc Check Valve,  is a fully encapsulated resilient disc seat, double flange swing check valve for reliable reverse flow prevention, good for both clean water/sewage applications. It is a 40 degree angle declined seat which can help quick closure and minimize the water hammer and slamming.



Features:

· Double fl ange design, the disc is composed of DI plate, steel bar shaft and nylon reinforced fabric.
·The rubber disc is totally encapsulated in NBR rubber for superior sealing and corrosion resistance.
·Nylon fabric is inserted into the disc for stengthening the disc from cracking and breaking during operations.
·Much shorter stroke to minimize water hammer and water slamming.
·The flap disc rises above the fl ow profi le reducing possible wear and damage.
·All iron parts are coated in fusion bond epoxy resin.
·Simple design, top entry cover allows for access for cleaning, replacement and maintenance easy.
·Meets BS EN 1074-3 and BS EN 558 F/F dimensions.



Technical Data:
Size Range:DN 50-600mm
Pressure rating:
PN10 ,PN16.
Max. temperature Range:
-10 to 80



General Applications:
For general water supply, fire fighting,HVAC/ cooling & sewage system.



Quality System
IQC Check call incoming parts
IPQC Check the production process is qualified
FQC All valves are pressure tested
OQC Check the valve ourlook and packing



Material:



EPOXY Coated Swing Flex Check Valve For Sewage System Ductile Iron Founded 0



EPOXY Coated Swing Flex Check Valve For Sewage System Ductile Iron Founded 1



EPOXY Coated Swing Flex Check Valve For Sewage System Ductile Iron Founded 2
