Suzhou Alpine Flow Control Co., Ltd
Be The Market Leader In Water Flow Control Valve
Temperature Range: | -10-80℃ | Pressure Rating: | 150-2500LB |
---|---|---|---|
Certificate: | ISO, UL,FM | Valve Type: | Double Eccentric Butterfly Valve |
Body Material: | Ductile Iron | Size: | 1-72 Inch |
Pressure Range: | 0-2.5MPa | Seat Material: | EPDM |
High Light: | Double Eccentric Butterfly Valve 2500LB,Dovetail Design Double Offset Butterfly Valve,EPDM Seat Double Eccentric Valve |

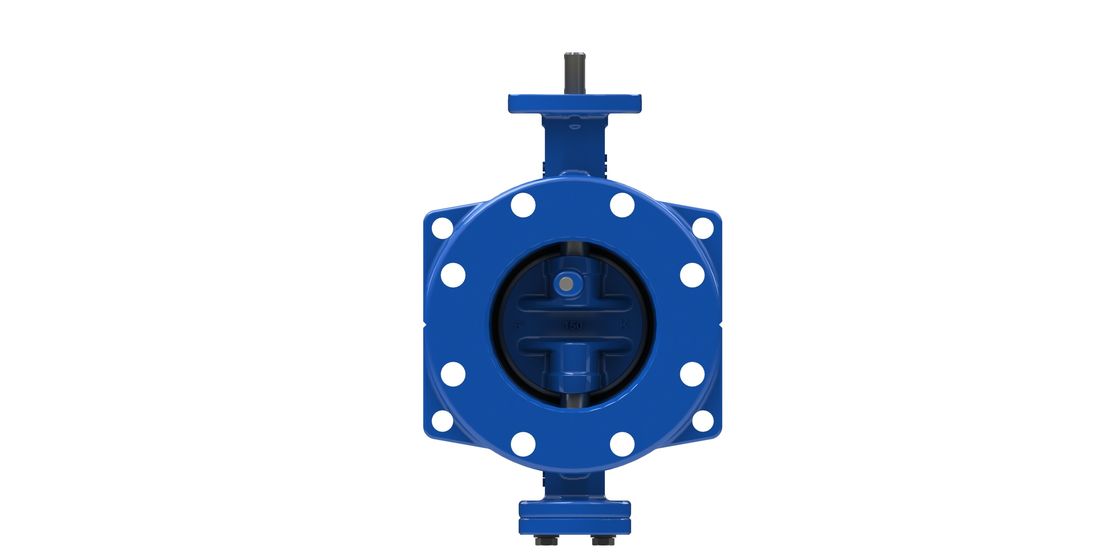

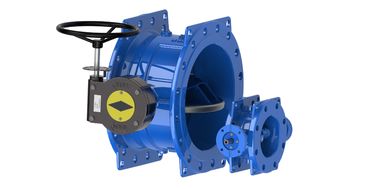

The Double Eccentric Butterfly Valve is used for controlling the flow in a drinking water system and it complies with the drinking water standard. It is a type of valve with a disc-shaped butterfly plate which rotates in the middle of the pipeline. It is designed and manufactured according to BS or ANSI Standard. The connection is a flange, and the body material is Ductile Iron. The disc material is Stainless Steel, and the seat material is EPDM. The pressure range is 0-2.5MPa.
Certificate | Valve Type |
ISO, UL, FM | Double Eccentric Butterfly Valve |
Operation | Connection |
Manual, Gear, Electric | Flange |
Body Material | Standard |
Ductile Iron | BS, ANSI |
Pressure Rating | Application |
150-2500LB | Water |
Pressure Range | Seat Material |
0-2.5MPa | EPDM |
Features | |
Dovetail Design, Comply With Drinking Water Standard, Big Torque |
AFC Double Eccentric Butterfly Valve is best known for its bare head and EPDM seal that provides an excellent tightness performance, making it ideal for water applications in various industries. It is also highly appreciated for its dovetail design and double eccentric structure that helps to reduce operating torque and eliminate any leakage. The valve body is made of ductile iron and is available in sizes of 1-72 inches. It comes with a stainless steel disc and meets BS and ANSI standards.
AFC Double Eccentric Butterfly Valve is the perfect choice for those looking for a reliable and durable valve for their water systems. It offers superior performance and is designed to meet all the requirements of various industrial applications. Its double eccentric structure helps to reduce friction and wear, thus improving its longevity. Furthermore, its dovetail design ensures a superior tightness performance, thus eliminating any leakage.
AFC Double Eccentric Butterfly Valve
Brand Name: AFC
Model Number: FBBD, FBGD
Place of Origin: China
Temperature Range: -10-80℃
Standard: BS, ANSI
Disc Material: Stainless Steel
Size: 1-72 Inch
Valve Type: Double Eccentric Butterfly Valve
Features: Comply With Drinking Water Standard, Bare Head, Double Eccentric
At ABC Corporation, we offer a variety of technical support and services for our Double Eccentric Butterfly Valves. Our team of certified professionals is dedicated to providing our customers with the highest level of service and support. We are committed to helping you get the most out of your Double Eccentric Butterfly Valve.
We offer professional installation and maintenance services for our Double Eccentric Butterfly Valve. Our technicians are highly experienced and trained to ensure that your valve is installed and maintained properly. Our technical support team is available to answer any questions you may have about installation and maintenance.
Our technical support team is available to help you troubleshoot any issues you may have with your Double Eccentric Butterfly Valve. We provide detailed instructions and guidance to help you identify the source of the problem and determine the best solution. Our team can also provide helpful tips and advice to help you get the most out of your valve.
We offer a one-year warranty on all of our Double Eccentric Butterfly Valves. We are committed to providing our customers with the highest quality of service and support. If you encounter any issues with your valve, we will repair or replace it free of charge. We stand behind our products and services and strive to provide our customers with the best possible experience.
The Double Eccentric Butterfly Valve will be packaged and shipped in the following way:
