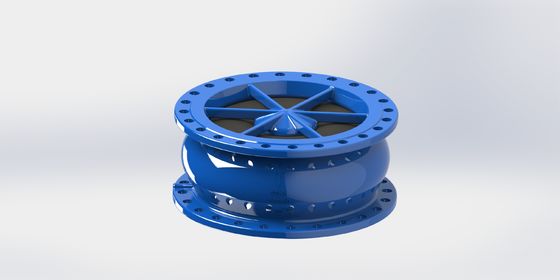

Blue Anti Water Hammer Check Valve Low Head Loss

Blue Anti Water Hammer Check Valve Low Head Loss

  • Blue Anti Water Hammer Check Valve Low Head Loss
  • Blue Anti Water Hammer Check Valve Low Head Loss
  • Blue Anti Water Hammer Check Valve Low Head Loss
  • Blue Anti Water Hammer Check Valve Low Head Loss
Blue Anti Water Hammer Check Valve Low Head Loss
Product Details:
Place of Origin: China
Brand Name: AFC OEM
Certification: WRAS, NSF61/372
Model Number: NSCV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable
Packaging Details: Plywood cases
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Product Name: Non Slam Check Valve With Anti Water Hammer Function Model Code: NSCV
Material: Ductile Iron GJS500-7 Standard: EN1074-3, EN12233
Fuction: Anti Water Hammer Coating: EPOXY
Color: Blue Head Loss: Low
High Light:

Blue Anti Water Hammer Check Valve

,

EPOXY Anti Water Hammer Check Valve

,

Low Head Loss Non Slam Valve

Non Slam Check Valve With Anti Water Hammer Function



Description:



Non Slam Check Valve is usually used as protection device against reverse flow when power failure happened in areas where noise pollution or water hammering happens. It can provide both quiet performance and low head loss.



Features:



·High strength ductile iron body used for long service life and less weight.
·Advanced dynamic design of single body with diffuser provides streamline flow and assures lower head loss.
·One of the lowest head loss check valve, big save in pumping power cost, valve disc with shorter stroker and spring reverse faster than most of check valve.
·Coated with powder epoxy both inside & outside for corrosion resistance.
·Bronze bushing reduce wearing problem during operation.
·Hydrodynamic design with spring ensures non slamming and water hammerless.
·Stainless steel spring hidden in the diffuser will not easily blocked by impurities
·Disc will positively close before reverse flow, and maximize the closing speed up to 0.2 Sec.
· Installation can be vertical/horizontal/inclined.
·Meet EN 558-1, ISO 5752 and EN 1092-2, ISO 7005-2 flange dimension.



Technical Data:



Size DN50-DN600
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water



Service Fields:


Genarally used for clean water, precleaned sewage water, Fire-fighting, Irrigation, Cooling and HVAC System.





Dimension:



DN50 - DN350

Blue Anti Water Hammer Check Valve Low Head Loss 0



Blue Anti Water Hammer Check Valve Low Head Loss 1



DN400 - DN600

Blue Anti Water Hammer Check Valve Low Head Loss 2

Dimension: Unit
DN Model No. L ΦD ΦK n-Φd C
(F/F) PN10 PN16 PN25 PN10 PN16 PN25 PN10 PN16 PN25 P10/N16 PN25
400 NSCV-0400 310 565 580 620 515 525 550 16-φ28 16-φ31 16-φ41 24.5 48
450 NSCV-0450 330 615 640 670 565 585 600 20-φ28 20-φ31 20-φ41 25.5 49
500 NSCV-0500 350 670 715 730 620 650 660 20-φ28 20-φ34 20-φ44 26.5 52
600 NSCV-0600 390 780 840 845 725 770 770 20-φ31 20-φ37 20-φ50 30 58





Materials:



DN50-DN350

Blue Anti Water Hammer Check Valve Low Head Loss 3



No. Part Name Material Standard
1 Body Ductille Iron GJS500-7
2 Disc Ductile Iron+Rubber GJS500-7+EPDM/NBR
3 Spring Stainless Steel AISI304/316
4 Stem Stainless Steel AISI420/304/316
5 Washer Plastic/Rubber Nylon/EPDM
6 Nut Stainless Steel AISI420/304
7 Bushing Bronze C61900
8 Diffuser Ductille Iron GJS500-7
9 Set Screw Stainless Steel AISI304





Blue Anti Water Hammer Check Valve Low Head Loss 4





No. Part Name Material Standard
1 Body Ductille Iron GJS500-7
2 Disc Ductile Iron+Rubber GJS500-7+EPDM
3 Spring Stainless Steel AISI304/316
4 Stem Stainless Steel AISI304
5 Washer Plastic/Rubber Nylon
6 Nut Stainless Steel AISI304
7 Bushing Bronze C61900
8 Plug Ductille Iron GJS500-7
9 Diffuser Ductille Iron GJS500-7
10 Set Screw Stainless Steel AISI304
