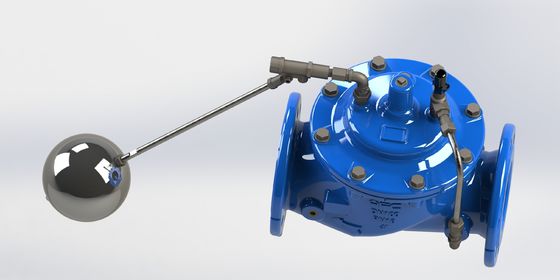

Stainless Steel Float Control Valve Ductile Iron Blue Epoxy Coated

Stainless Steel Float Control Valve Ductile Iron Blue Epoxy Coated

  • Stainless Steel Float Control Valve Ductile Iron Blue Epoxy Coated
  • Stainless Steel Float Control Valve Ductile Iron Blue Epoxy Coated
  • Stainless Steel Float Control Valve Ductile Iron Blue Epoxy Coated
  • Stainless Steel Float Control Valve Ductile Iron Blue Epoxy Coated
Stainless Steel Float Control Valve Ductile Iron Blue Epoxy Coated
Product Details:
Place of Origin: China
Brand Name: AFC
Certification: EN1074-5
Model Number: A100, A10B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable USD RMB
Packaging Details: Plywood cases
Delivery Time: 15-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Product Name: Blue Epoxy Coated Stainless Steel Float Control Valve Ductile Iron Model Code: A100 A10B
Material: Ductile Iron GJS500-7 Pilot Material: SS304
Standard: EN1074-5 Function: Modulating
Coating: EPOXY Diaphragm: Nylon Reinfocement With EPDM
High Light:

SS304 Pilot Float Control Valve

,

Float Control Valve Ductile Iron

,

Blue Epoxy Coated Float Control Valve

Blue Epoxy Coated Stainless Steel Float Control Valve Ductile Iron

A100 is a remote float control valve which consists of

1. Ductile iron main valve

2. Float control pilot-P100

3. Installed the complete valve set on the top of tank or main valve and pilot separate- remote control

4. On - off control set

5. The float drop when water level decrease , main valve open, water start to flow in

6. Main valve close when float reaches high water level.





A10B is a bi-level float control valve which consists of

1. Ductile iron main valve

2. Bi-level float control pilot-P10B

3. Installed full valve on the top of tank or main valve and pilot separate- remote control

4. On - off control set

5. Control water level in the tank

6. Valve open fully when float reaches the pre-set low water level-lower stop

7. Close when the float reaches the upper stop
