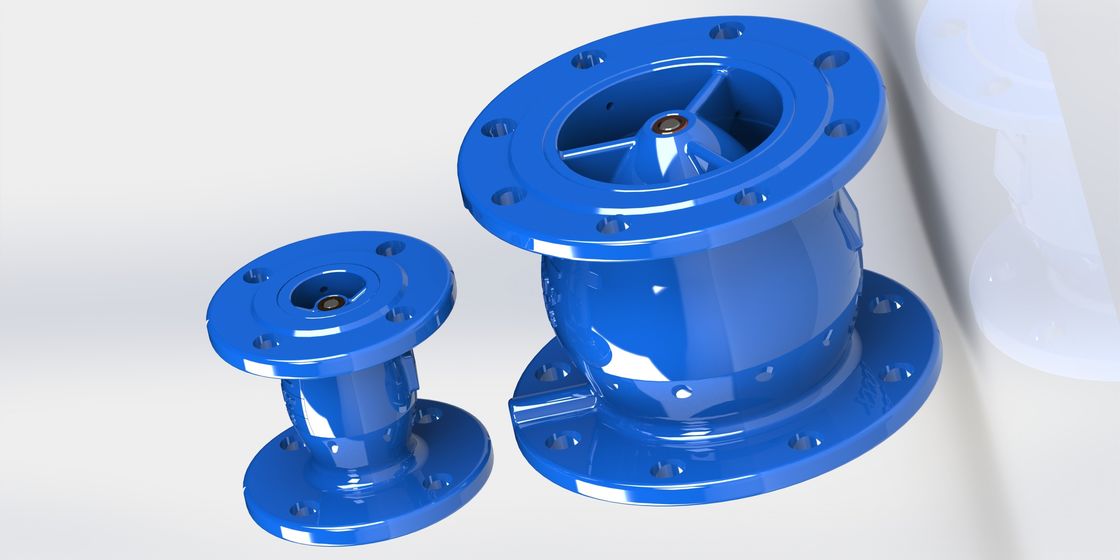

Dynamic Design Non Slam Check Valve Anti Water Hammer Function

Dynamic Design Non Slam Check Valve Anti Water Hammer Function

  • Dynamic Design Non Slam Check Valve Anti Water Hammer Function
  • Dynamic Design Non Slam Check Valve Anti Water Hammer Function
  • Dynamic Design Non Slam Check Valve Anti Water Hammer Function
  • Dynamic Design Non Slam Check Valve Anti Water Hammer Function
Dynamic Design Non Slam Check Valve Anti Water Hammer Function
Product Details:
Place of Origin: China
Brand Name: AFC,OEM
Certification: WRAS, NSF61/372
Model Number: NSCV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable
Packaging Details: Plywood cases
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Product Name: Anti Water Hammer Function Non Slam Check Valve Dynamic Design Model Code: NSCV
Material: Ductile Iron GJS500-7 Standard: EN1074-3, EN12233
Fuction: Anti Water Hammer Coating: EPOXY
Color: Blue Head Loss: Low
High Light:

Non Slam Valve Anti Water

,

Dynamic Design Non Slam Check Valve

,

Non Slam Check Valve EPOXY Coating

Anti Water Hammer Function Non Slam Check Valve Dynamic Design



Description:



Non Slam Check Valve is used as a protection valve against reverse flow when power failed in areas where noise pollution or water hammering occureed. It can provide both quiet performance and low head loss.



Features:



NSCV is used against water reverse flow and protects pump and other devices from water hammer harmness.

Advance diffuser design maintains the streamline flow and reduces the water head loss to save pumping power.

Sphere disc head design makes flow resistance coefficient lower than flat type does.

Powder fusion epoxy coating NSF certificated.

Bronze bushing can reduce the stem wearing during working and extended the service time.

Choosing the suitable NSCV into working,can return the investment around one year by pumping energy saving

Closing speed is very quick(max 0.2sec) and the stroke is only about 20% of valve bore diameter. That can ensure non slamming and minimize the water hammer by hydrodynamic design with spring.





Technical Data:



Size DN50-DN600
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water





Service Fields:
generally used forprecleaned sewage water, clean water, Fire-fighting, Irrigation, Cooling and HVAC System.



Dimension:

DN50 - DN350

Dynamic Design Non Slam Check Valve Anti Water Hammer Function 0

Dynamic Design Non Slam Check Valve Anti Water Hammer Function 1







DN400 - DN600



Dynamic Design Non Slam Check Valve Anti Water Hammer Function 2

Dynamic Design Non Slam Check Valve Anti Water Hammer Function 3



Materials:



DN50-DN350

Dynamic Design Non Slam Check Valve Anti Water Hammer Function 4Dynamic Design Non Slam Check Valve Anti Water Hammer Function 5



Dynamic Design Non Slam Check Valve Anti Water Hammer Function 6Dynamic Design Non Slam Check Valve Anti Water Hammer Function 7

Dynamic Design Non Slam Check Valve Anti Water Hammer Function 8
