Home ProductsDouble Eccentric Butterfly Valve

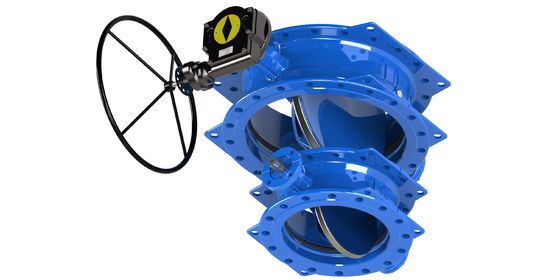

EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape

EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape

  • EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape
  • EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape
  • EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape
  • EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape
EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape
Product Details:
Place of Origin: China
Brand Name: AFC OEM
Certification: EN593
Model Number: FBGD, FBBD, FBED,FBPD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable
Packaging Details: Plywood cases and pallets
Delivery Time: Based on order
Payment Terms: L/C, T/T
Supply Ability: 2 containers in 60 days
Contact Now
Detailed Product Description
Product Name: EPDM Sealing Ductile Iron Butterfly Valve , AWWA C504 Flange Arch Shape Design Model Code: FBGD, FBBD, FBED,FBPD
Color: Blue RAL 5010 Material: Ductile Iron GSJ500-7
Disc Seat: 316L Body Seat: EPDM
Pressure Rating: 150 PSI Standard: AWWA C504
High Light:

Arch Ductile Iron Butterfly Valve

,

EPDM Sealing Double Eccentric Butterfly Valve

,

AWWA C504 Ductile Iron Butterfly Valve

EPDM Sealing Ductile Iron Butterfly Valve , AWWA C504 Flange Arch Shape Design




Features:



Double eccentric design



Arch shape design, stronger ribs on back side



Reduce the compression of rubber seat



Increase the service life of rubber



EPDM seal for drinking water > 5,000 cycle test, for DN600 and up



Flow thru disc-energy saving pumping cost



Reduce head loss and minimize turbulence



Seal in both direction. Disc and stem are strong without many deformation



Online repairing. The special technology can help user to repair the Double Eccentric Flange Butterfly Valve without taking the valve out of the pipeline. The user only needs to repair it from the exterior of the butterfly valve without going into the pipeline.

Please consult the factory and we will show you how to repair the BV when the rubber seal is damaged.


Operation Torque:



Bare Head Torque (Nm)
Inch Nm
4 85
6 128
8 210
10 250
12 372
14 760
16 1160
18 1280
20 1680
24 2500
28 2592
32 4428
36 5300
40 7245
48 13320



Materials:
 EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape 0EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape 1



EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape 2EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape 3



Dimension:



EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape 4

EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape 5



EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape 6

EPDM Sealing Ductile Iron Butterfly Valve AWWA C504 Flange Arch Shape 7
