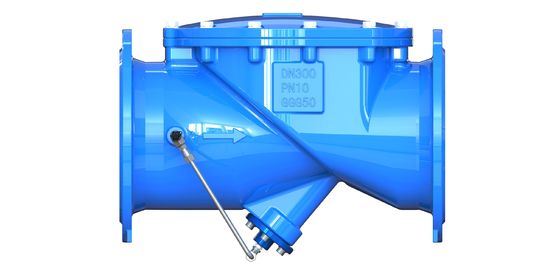

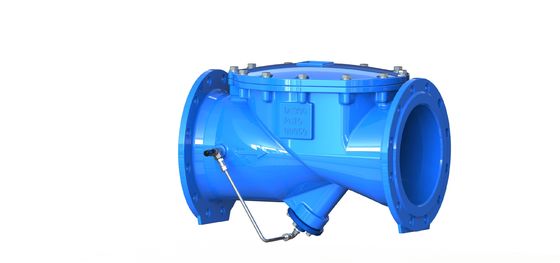

EPDM Disc Swing Flex Check Valve No Clog Design With Hydraulic Cushion

EPDM Disc Swing Flex Check Valve No Clog Design With Hydraulic Cushion

  • EPDM Disc Swing Flex Check Valve No Clog Design With Hydraulic Cushion
  • EPDM Disc Swing Flex Check Valve No Clog Design With Hydraulic Cushion
  • EPDM Disc Swing Flex Check Valve No Clog Design With Hydraulic Cushion
EPDM Disc Swing Flex Check Valve No Clog Design With Hydraulic Cushion
Product Details:
Place of Origin: China
Brand Name: AFC,OEM
Certification: CE, NSF61/372
Model Number: RDCS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: Plywood cases
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Material: GJS500-7 Standard: EN1074-3,EN558,BS 4504
Coating: EPOXY Disc: EPDM
Incline Angle: 45 Degree Media: Water And Waste Water
High Light:

EPDM Disc Swing Type Check Valve

,

No Clog Swing Flex Check Valve

,

Swing Check Valve Hydraulic Cushion

No Clog Design Swing Flex Check Valve With Expoxy Coated With Hydraulic Cushion Device



Description:



RDCS is a slow closing check valve with hydraulic cushion device. The bottom of the body is equipped with hydraulic cushion device, when the pump stops, the disc will fall quickly, before full closure about 15% of the trip ,the disc will close slowly through the special device without water hammer happened.

Features:

.Rubber disc adopts NBR or EPDM fully encapsulated method, that can provide better sealing and corrosion protection.

.Nylon lining into the disccan strengthen it and avoid fracture.

.The disc is located on the upper part of the fluid after opening the valve and can reduce damage.

.All cast iron parts are coated with epoxy.

.Simple design, easy opening the upper bonnet to do clean, replace, and maintain work.

.Complies with BS EN1074-3,BS4504, and BS EN558 distance of faces.

General Applications:
For general water supply, fire fighting,HVAC/ cooling & sewage system.

Usually installed at the pump outlet.



Size DN50-DN600
Working Temperature - 10C- 80C
Pressure Rating PN10,PN16,PN25
Connecting Flange PN10/PN16/ANSI 150LB
Flow Media Water and Waste Water



Quality System
IQC Check call incoming parts
IPQC Check the production process is qualified
FQC All valves are pressure tested
OQC Check the valve ourlook and packing





Material:

EPDM Disc Swing Flex Check Valve No Clog Design With Hydraulic Cushion 0EPDM Disc Swing Flex Check Valve No Clog Design With Hydraulic Cushion 1

EPDM Disc Swing Flex Check Valve No Clog Design With Hydraulic Cushion 2EPDM Disc Swing Flex Check Valve No Clog Design With Hydraulic Cushion 3
