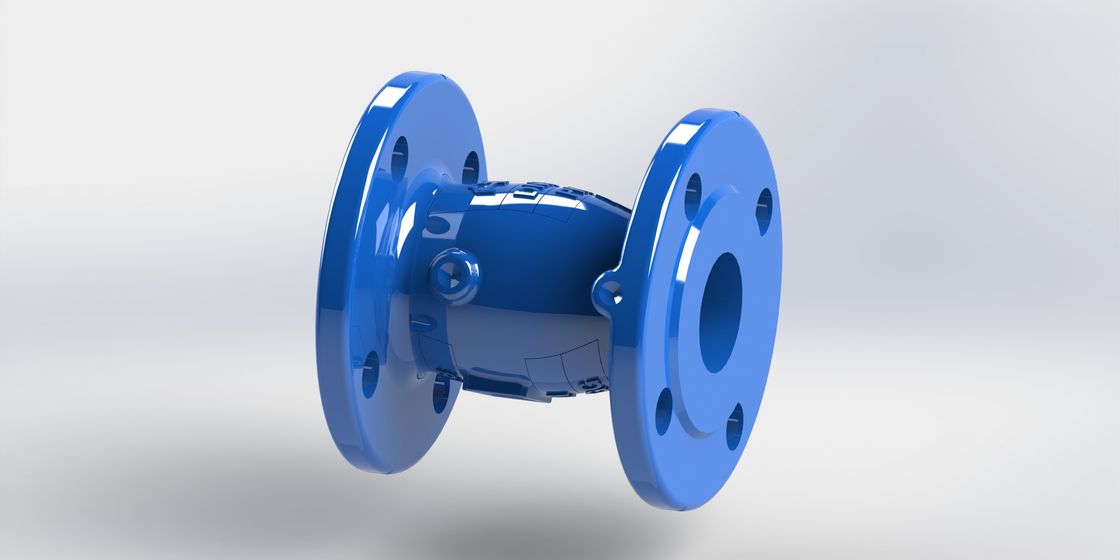

EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function

EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function

  • EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function
  • EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function
  • EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function
  • EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function
EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function
Product Details:
Place of Origin: China
Brand Name: AFC OEM
Certification: WRAS, NSF61/372
Model Number: NSCV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable
Packaging Details: Plywood cases
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Product Name: Non Slam Check Valve Hydrodynamic Design Founded With Quick Close Function Model Code: NSCV
Material: Ductile Iron GJS500-7 Standard: EN1074-3, EN12233
Fuction: Anti Water Hammer Coating: EPOXY
Color: Blue Head Loss: Low
High Light:

Hydrodynamic Non Slam Check Valve

,

Quick Close Function Non Slam Valve

,

EPOXY Coating Non Slam Valve





Non Slam Check Valve Hydrodynamic Design Founded With Quick Close Function







Description:



    NSCV- Non Slam Check Valve has very short face to face distance. Closing is so quick up to max 0.2sec and the stroke is only about 20% of valve bore diameter. It has hydrodynamic design with spring that can ensure non slamming and to minimize the water hammer. The advance diffuser design maintains the streamline flow and reduces the water head loss to save pumping power. Overall it has a very low headloss and strong capability to minimize water hammer.



Features:



Much shorter stroke- faster closing.

Around 0.2D of stroke. Swing-check around 0.8-1.0D

Spring accelerating closing speed.

NSCV- keep system silent, quiet operation. no water hammer and slamming.

Much less components-easy maintenance

Diffuser- reducing pressure loss and help recovery of pressure



Technical Data:



Size DN50-DN600
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water



Quality System
IQC Check call incoming parts
IPQC Check the production process is qualified
FQC All valves are pressure tested
OQC Check the valve ourlook and packing



Service Fields:
Mainly used for clean water, precleaned sewage water, Fire-fighting, Irrigation, Cooling and HVAC System.





Dimension:

DN50 - DN350

EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function 0



EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function 1



DN400 - DN600

EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function 2

EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function 3





Materials:



DN50-DN350

EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function 4EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function 5



EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function 6EPOXY Coating Hydrodynamic Non Slam Valve Founded With Quick Close Function 7
