Suzhou Alpine Flow Control Co., Ltd
Be The Market Leader In Water Flow Control Valve
 |
| Place of Origin: | China |
| Brand Name: | AFC, Multiple list and Private label is available |
| Certification: | FM1120 and UL 262 |
| Model Number: | FRHF FRHG FRHX |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price negotiable |
| Packaging Details: | Plywood cases |
| Delivery Time: | Based on order |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 days for 2 containers |
| Product Name: | Red FBE Coated Resilient Seated UL FM Gate Valve | Model Code: | FRHF FRHG FRHX |
|---|---|---|---|
| Material: | Ductile Iron | Color: | Red EY3000 |
| Connection: | Flange Groove | Stem: | SS420 |
| Wedge: | EPDM | Flange: | AISI B16.4 PN16 |
| High Light: | Resilient Seated UL FM Gate Valve,FBE Coated UL FM Gate Valve,Groove Connection Resilient Seated Gate Valve |
||

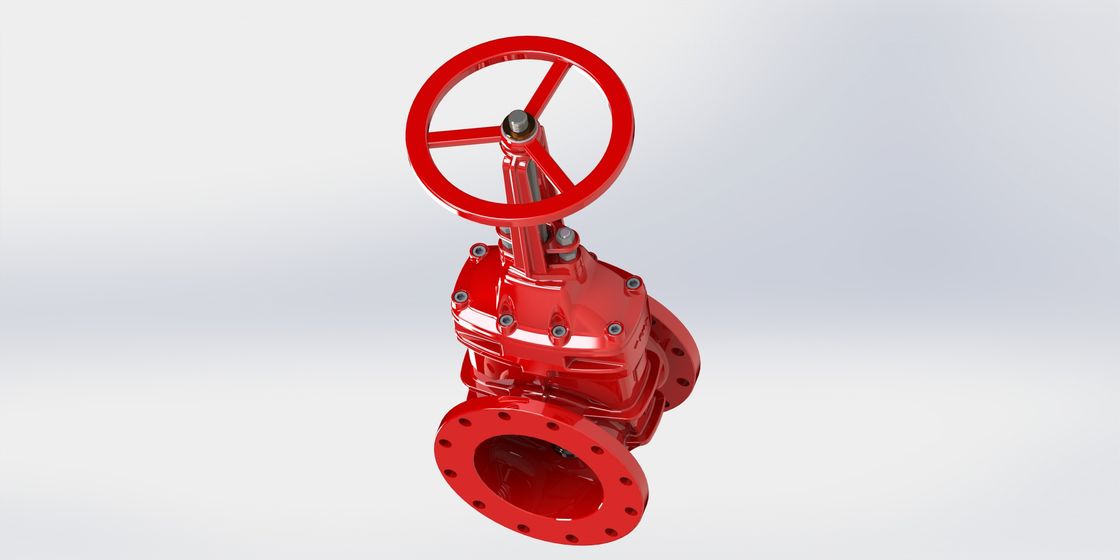

Red FBE Coated Resilient Seated UL FM Gate Valve Flange Or Groove Connection
Feature
Stem Seal and Replacement : The valve has a stem seal designed to prevent water within the body from leaking to the enviornment at the point where the stem passes through the bonnet.It is designed to be replaced by one person with the valve in the wide open position and under the rated working pressure
Application
OS&Y gate valve are used indoors or in outdoors pits and NRS valves are used with wall indicator posts or underground with tee-handle wrenches or indicator posts attached or as roadway box valves
NRS gate valves are available either with or without a base flange. Valves with base flange are used to support upright indicator posts. Valves without base flange are used with wall indicator or tee-wrenches in buried serivces
Specification
| Size | DN50-DN300 |
| Working Temperature | - 10C- 80C |
| Flange | AISI B16.1 and PN16 |
| Grooved Ends | AWWA C606 |
| Flow Media | Water |
Dimension
