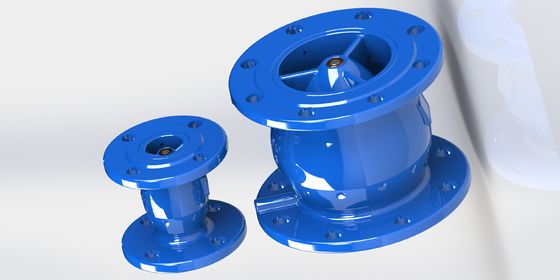

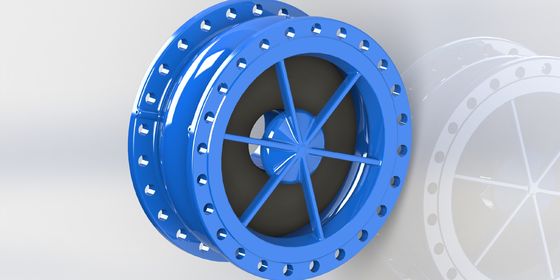

EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve

EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve

  • EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve
  • EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve
  • EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve
  • EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve
EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve
Product Details:
Place of Origin: China
Brand Name: AFC,OEM
Certification: WRAS, NSF61/372
Model Number: NSCV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable USD RMB
Packaging Details: Plywood cases
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Product Name: Anti Water Hammer Non Slam Swing Check Valve With Quick Close Function Model Code: NSCV
Material: Ductile Iron GJS500-7 Standard: EN1074-3, EN12233
Fuction: Anti Water Hammer Coating: EPOXY
Color: Blue Head Loss: Low
High Light:

Blue Non Slam Swing Check Valve

,

EN12233 Non Slam Swing Check Valve

,

Quick Close Anti Water Hammer Valve







Anti Water Hammer Non Slam Swing Check Valve With Quick Close Function



Description:



Non Slam Check Valve has very short face to face distance, closing is so quick up to max 0.2sec and the stroke is only about 20% of valve bore diameter. It has hydrodynamic design with spring ensure non slamming and to minimize the water hammer. The advance diffuser design maintains the streamline flow and reduces the water head loss to save pumping power. Overall it has a very low headloss and strong capability to minimize water hammer.



Features:



· High strength ductile iron body used for durability and less weight.
· Advanced dynamic design of single body with diffuser provides streamline flow and assures lower head loss.
· One of the lowest head loss check valve, big save in pumping power cost, valve disc with shorter stroker and spring reverse faster than most of check valve.
· Coated with powder epoxy both inside & outside for corrosion resistance.
· Bronze bushing reduce wearing problem during operation.
· Hydrodynamic design with spring ensures non slamming and water hammerless.
· Stainless steel spring hidden in the diffuser under protection while valve in operation.
· Disc will positively close before reverse flow, and maximize the closing speed up to 0.2 Sec.
· Installation can be vertical/horizontal/inclined.
· Comply with EN 558-1, ISO 5752 and EN 1092-2, ISO 7005-2 flange dimension.





Service Fields:
Mainly used for clean water, precleaned sewage water, Fire-fighting, Irrigation, Cooling and HVAC System.





Technical Data:



Size DN50-DN600
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water









Dimension:

DN50 - DN350

EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve 0

EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve 1





















































DN400 - DN600



EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve 2

EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve 3



Materials:



DN50-DN350

EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve 4EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve 5



EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve 6EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve 7EN12233 Quick Close Anti Water Hammer Non Slam Swing Check Valve 8
