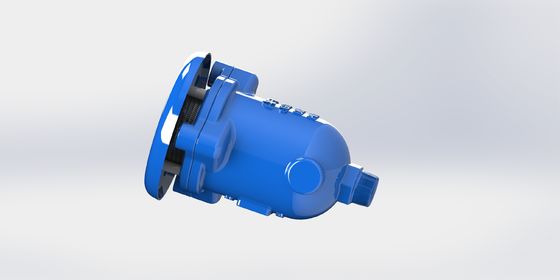

Thread Type Air Release Vent Valve With Ductile Iron Body , High Durability

Thread Type Air Release Vent Valve With Ductile Iron Body , High Durability

    • Thread Type Air Release Vent Valve With Ductile Iron Body , High Durability
    • Thread Type Air Release Vent Valve With Ductile Iron Body , High Durability
  • Thread Type Air Release Vent Valve With Ductile Iron Body , High Durability

    Product Details:

    Place of Origin: China
    Brand Name: AFC OEM
    Certification: WRAS
    Model Number: ARVS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price negotiable USD RMB
    Packaging Details: Plywood cases
    Delivery Time: Based on order
    Payment Terms: L/C, T/T
    Supply Ability: 60 days for two containers
    Contact Now
    Detailed Product Description
    Material: Ductile Iron GJS500-7 Float: Stainless Steel 304
    Color: RAL5010,RAL 5015 Rubber: EPDM
    O-ring: NBR Connection: Thread
    High Light:

    air pressure release valve

    ,

    water air release valve







    Single Air Release Valve Single Body Thread Type Small Air Venting For Building Service​







    Feature



    ARVS-Single air release valve is commonly installed in the peak of the pipeline, and used for exhausting the compressed air in pipeline system, generally there will be about 2% of dissolved air in water and it will release as bubbles and thru the air release valve nozzle. It can prevent the existence of bubble gap for flow, this can help a better efficiency for transmission of flow.



    • High grade ductile iron body, reduce the weight and much longer life than cast iron.
    • Simple mechanism with lever and float.
    • The fl oat and internal mechanism are made of AISI 304 stainless steel and last for much longer life cycles.
    • Epoxy coating for both inside and outside.
    • Male connection can easily be connected to isolated valves, no need further nipples..
    • End connection can be BSPT or NPT thread.





    Material

    Thread Type Air Release Vent Valve With Ductile Iron Body , High Durability 0



    NO. Part Name Material Standard
    1 Body Ductile Iron EN GJS500-7
    2 Seat Rubber EPDM
    3 Pin Stainless Steel AISI304
    4 Bonnet Ductile Iron EN GJS500-7
    5 Small Nozzle Stainless Steel AISI304
    6 Hex Bolt Stainless Steel AISI304
    7 Washer Stainless Steel AISI304
    8 O-ring Rubber NBR
    9 Support Plate Stainless Steel AISI304
    10 Hex Bolt Stainless Steel AISI304
    11 Float Stainless Steel AISI304

    Dimension



    Thread Type Air Release Vent Valve With Ductile Iron Body , High Durability 1

    DN Model No. A C H
    15 ARVS-0015-BP G 1/2" 20 152
    20 ARVS-0020-BP G 3/4" 20 152
    25 ARVS-0025-BP G 1" 20 152





    Air Flow Characteristic

    Thread Type Air Release Vent Valve With Ductile Iron Body , High Durability 2
