Swing Flex Check Valve For Back Flow , Water Flow Valve With Nylon Reinforcement Disc

Swing Flex Check Valve For Back Flow , Water Flow Valve With Nylon Reinforcement Disc

  • Swing Flex Check Valve For Back Flow , Water Flow Valve With Nylon Reinforcement Disc
  • Swing Flex Check Valve For Back Flow , Water Flow Valve With Nylon Reinforcement Disc
  • Swing Flex Check Valve For Back Flow , Water Flow Valve With Nylon Reinforcement Disc
Swing Flex Check Valve For Back Flow , Water Flow Valve With Nylon Reinforcement Disc
Product Details:
Place of Origin: China
Brand Name: AFC
Certification: CE, NSF61/372
Model Number: RDCV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: Plywood cases
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now
Detailed Product Description
Material: GJS500-7 Standard: EN12233
Coating: EPOXY Disc: EPDM And Nylon Reinforcement
Incline Angle: 40 Degree Media: Water And Waste Water
High Light:

water gate valve

,

water regulator valve

,

Nylon Reinforcement Disc Water Flow Valve





Water Control Valve For Back Flow Swing Flex Check Valve Nylon Reinforcement Disc With EPDM​​







Description:

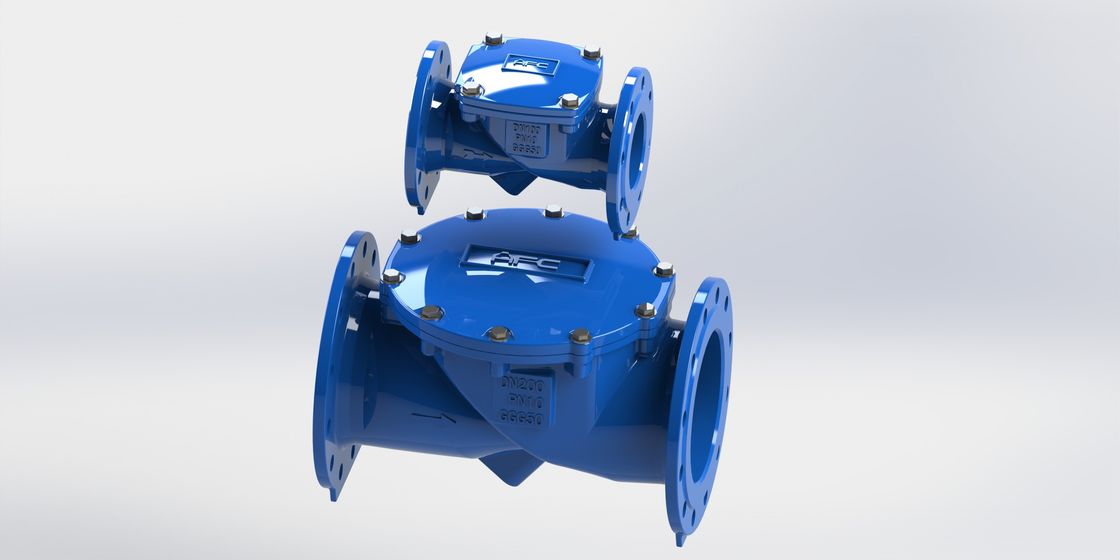

    RDCV, Rubber Disc Check Valve,  is a fully encapsulated resilient disc seat, double flange swing check valve for reliable reverse flow prevention, good for both clean water/sewage applications. It is a 40 degree angle declined seat which can help quick closure and minimize the water hammer and slamming.



Features:



Simple design disc w/o movable components

Over 50,000 cycles operations

No rusting-long service

40 degree incline angle-lower stroke and reduce water hammer and slamming.

Almost half stroke of traditional check valve.

Keep 100% full flow area, reduce head loss.



Technical Data:



Size DN50-DN600
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Water and Waste Water



General Applications:


For general water supply, fire fighting,HVAC/ cooling & sewage system.



Quality System
IQC Check call incoming parts
IPQC Check the production process is qualified
FQC All valves are pressure tested
OQC Check the valve ourlook and packing



Material:





Swing Flex Check Valve For Back Flow , Water Flow Valve With Nylon Reinforcement Disc 0



Swing Flex Check Valve For Back Flow , Water Flow Valve With Nylon Reinforcement Disc 1



Swing Flex Check Valve For Back Flow , Water Flow Valve With Nylon Reinforcement Disc 2
