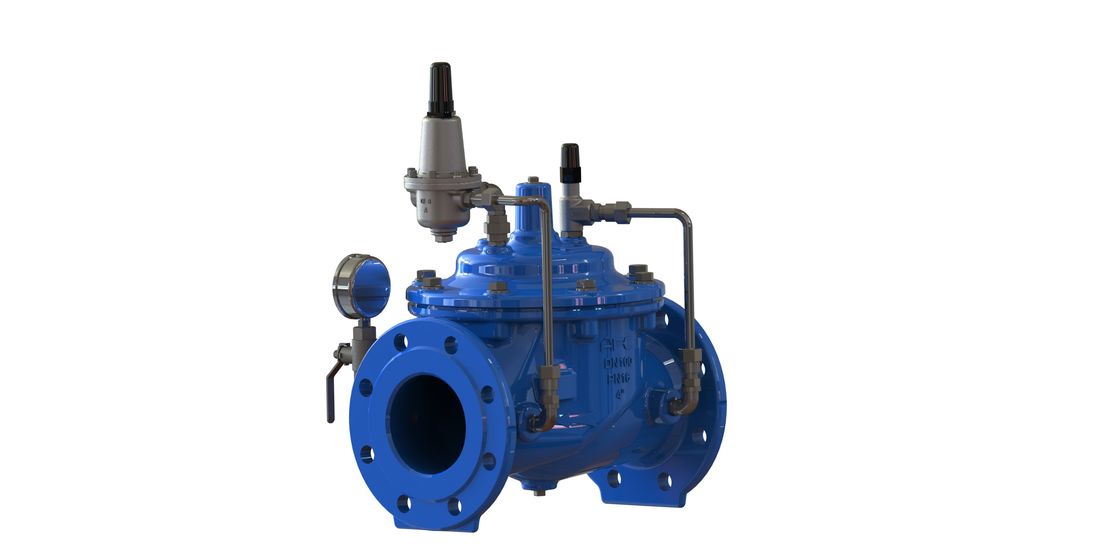

EPDM Rubber Adjustable Pressure Reducing Valve For Reducing Upstream Pressure

EPDM Rubber Adjustable Pressure Reducing Valve For Reducing Upstream Pressure

  • EPDM Rubber Adjustable Pressure Reducing Valve For Reducing Upstream Pressure
  • EPDM Rubber Adjustable Pressure Reducing Valve For Reducing Upstream Pressure
  • EPDM Rubber Adjustable Pressure Reducing Valve For Reducing Upstream Pressure
EPDM Rubber Adjustable Pressure Reducing Valve For Reducing Upstream Pressure
Product Details:
Place of Origin: China
Brand Name: AFC OEM
Certification: EN1074-5
Model Number: A200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: plywood cases
Delivery Time: 15-60 days
Payment Terms: L/C, T/T
Supply Ability: Based On order
Contact Now
Detailed Product Description
Material: Ductile Iron GJS500-7 Pilot Material: SS304
Tubing: SS304 Coating: EPOXY
Diaphragm: Nylon Reinforcement With EPDM Rubber: EPDM
High Light:

water pressure control valve

,

stainless pressure reducing valve





SS304 Pilot Stable Down Stream Ductile Iron Main Valve EPOXY Coated Pressure A200 Water Pressure Reducing Valve







Description:



A200‘s primary function is to reduce a greater upstream pressure to a lesser, more manageable downstream pressure, operating without regard to either upstream supply or downstream demand. It reduces higher inlet pressure to a constant outlet pressure. Outlet pressure is adjustable over complete range of control spring.



Feature:



Reduce a higher inlet pressure to a stable outlet pressure

Regardless of variation of inlet pressure or variation of outlet flow.

When downstream pressure exceeds setting, pilot and main valve will close

V-port and reduced bore as an option





Service Fields:


For water system, irrigation system.



Technical Data:



Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water





Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



Materials And Dimension



DN50-DN350

EPDM Rubber Adjustable Pressure Reducing Valve For Reducing Upstream Pressure 0EPDM Rubber Adjustable Pressure Reducing Valve For Reducing Upstream Pressure 1



EPDM Rubber Adjustable Pressure Reducing Valve For Reducing Upstream Pressure 2



DN400-DN800



EPDM Rubber Adjustable Pressure Reducing Valve For Reducing Upstream Pressure 3EPDM Rubber Adjustable Pressure Reducing Valve For Reducing Upstream Pressure 4

EPDM Rubber Adjustable Pressure Reducing Valve For Reducing Upstream Pressure 5
