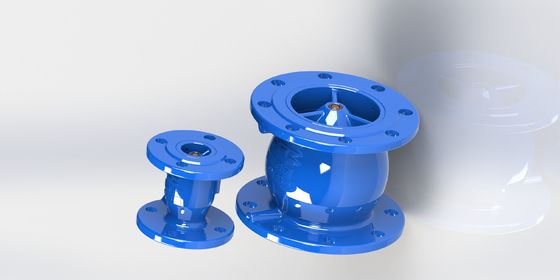

Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25

Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25

    • Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25
    • Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25
    • Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25
    • Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25
  • Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25

    Product Details:

    Place of Origin: China
    Brand Name: AFC OEM
    Certification: WRAS, NSF61/372
    Model Number: NSCV

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: Plywood cases
    Delivery Time: 45-60 days
    Payment Terms: L/C, T/T
    Supply Ability: Based on order
    Contact Now
    Detailed Product Description
    Product Name: Ductile Iron Non Slam Check Valve Model Code: NSCV
    Material: Ductile Iron GJS500-7 Standard: EN1074-3, EN12233
    Fuction: Anti Water Hammer Coating: EPOXY
    Color: Blue Head Loss: Low
    High Light:

    non slam type check valve

    ,

    anti water hammer check valve

    Ductile iron Anti Water Hamme Non Slam Check Valve Quick Close​​

    Low Head Loss EPOXY Coated







    Description:



    NSCV- Non Slam Check Valve is used as a protection device against reverse flow when power failure in areas where noise pollution or water hammering is a critical issue. It can provide not only quiet performance but also low head loss. The faster closing speed can decrease the reverse speed of water to minimize the water hammer.



    Features:



    Extremely short stroke, quick close

    Diffuser design- lowest head loss and streamline flow

    Zero leakage of rubber disc seat

    Spring hidden on back side of disc prevent clogging

    Bronze bearing-long life service



    Technical Data:



    Size DN50-DN600
    Working Temperature - 10C- 80C
    Flange AISI B16.1 Or PN16
    Flow Media Clean Water



    Service Fields:


    Mainly used for clean water, precleaned sewage water, Fire-fighting, Irrigation, Cooling and HVAC System.





    Dimension:



    DN50 - DN350

    Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25 0







    DN400 - DN600

    Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25 1

    Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25 2





    Materials:



    DN50-DN350



    Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25 3





    Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25 4







    Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25 5





    Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25 6
