Suzhou Alpine Flow Control Co., Ltd
Be The Market Leader In Water Flow Control Valve
 |
| Place of Origin: | China |
| Brand Name: | AFC |
| Certification: | UL 262 and FM 1120 |
| Model Number: | FRHF, FNCF, FRHG, FNCG |
| Packaging Details: | Plywood cases |
|---|---|
| Delivery Time: | 45-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Based on order |
| Material: | Stainless Steel | Color: | Red |
|---|---|---|---|
| Standard: | UL 262 And FM 1120 | Appplication: | Fire Fighting System |
| Type: | Flange Grooved Type | ||
| High Light: | soft seated gate valve,wedge type gate valve |
||

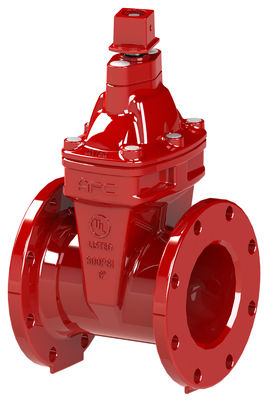

Flange Grooved Type Resilient Seated Gate Valve High - Grade Rubber Disc Available
• Newly advanced design, less operation torgue & abrasion resistance.
• Body & Cover are made of high grade Ductile Iron.
• Forged stem provides stronger stem operation and less moving parts.
• Disc is covered by high-grade rubber, which complies with drinking water.
• High-tech rubber curing with precise geometry dimensions, more resilient & strong adhesive to ductile casting.
• The O-ring stem seals are designed to prevent stem leakage. and provide replacement of the O-ring without disassambling of valve from mainline pipes.
• Both inside & outside are coated with epoxy resin powder.
Field Services:
Fire fighting system.
Fire fighting Resilient seated gate valve with a soft seal disc which is fully encapsulated with rubber. The valve is designed with new technology for light operating, no clogging and no corrosion, good resilient memory & long service life. It can be used extensively in all kinds of water supply & sewage, fi re-fi ghting and function as a shut-off or regulation valve.
Technical Data:
Size Range: DN50~DN300mm(2''-12'')
Working Pressure: 250/300 PSI
Working Temperature:-10C- 80C
Flow Media: Water
Flange Ends Connection: AISI B16.1 and PN16
Grooved Ends Connection: AWWA C606
Quality Control
| IQC | Check call incoming parts |
| IPQC | Check the production process is qualified |
| FQC | All valves are pressure tested |
| OQC | Check the valve ourlook and packing |
Dimensions:
| Size | Model No. | L | ΦD | ΦK | n-φd | H | H | ||||
| close | open | ||||||||||
| IN | mm | FRH(F/G/X) | mm | PN16 | ANSI | PN16 | ANSI | PN16 | ANSI | mm | mm |
| 2 | 50 | Ffrhf-0050 | 178 | 165 | 152 | 125 | 121 | 4-φ19 | 4-φ19 | 312 | 382 |
| 2 1/2 | 65 | Ffrhf-0065 | 190 | 185 | 178 | 145 | 140 | 4-φ19 | 4-φ19 | 338 | 408 |
| 3 | 80 | Ffrhf-0080 | 203 | 200 | 191 | 160 | 152 | 8-φ19 | 4-φ19 | 393 | 480 |
| 4 | 100 | Ffrhf-0100 | 229 | 220 | 229 | 180 | 191 | 8-φ19 | 8-φ19 | 441 | 544 |
| 5 | 125 | Ffrhf-0125 | 254 | 250 | 210 | 8-φ19 | 8-φ23 | 559 | 692 | ||
| 6 | 150 | Ffrhf-0150 | 267 | 285 | 279 | 240 | 241 | 8-φ23 | 8-φ23 | 598 | 759 |
| 8 | 200 | Ffrhf-0200 | 292 | 340 | 343 | 295 | 298 | 12-φ23 | 8-φ23 | 743 | 953 |
| 10 | 250 | Ffrhf-0250 | 330 | 400 | 406 | 355 | 362 | 12-φ28 | 12-φ26 | 880 | 1140 |
| 12 | 300 | Ffrhf-0300 | 356 | 455 | 483 | 410 | 432 | 12-φ28 | 12-φ26 | 1009 | 1319 |
